OFF-GRID SHACK
Where it started
My first building was a 6 × 10 uninsulated garden shed with barn doors. It was about 75 feet from the house, so I had to run a long extension cord to it. That is what first got me thinking about solar.
In May 2021, I bought four 305-watt solar panels. The yard was too small to have a good place for them, so I sold them a few months later. I kept the notes, diagrams, and forum discussions from the project.
The Mayfield tornado
After the Mayfield tornado, we were without power for a week. A generator kept things running, but I had to leave the door cracked for the extension cords. A couple of months later, I installed a Reliance through-the-wall power kit at the house. I use the same type of kit in my shack today.
The building I use now
The building I have now is 8 × 12 feet with a 4 × 8 covered porch. It is fully insulated and has an upgraded residential-style door and two upgraded windows. I finished the inside with pine paneling on the walls and ceiling and laminate flooring.
After I moved, the building was about as far from the house as the old garden shed had been. At the end of 2024, I bought a small power station and a 100-watt solar panel. The things I ran in the shed that winter drew about 150 watts. When I took the power station inside to charge it, it usually still had plenty of power left. That’s when I started planning a full system.
The finished system
By May 2025, I had a working 48-volt off-grid solar system. The final system uses four 12-volt batteries, four 320-watt solar panels, a 100-amp MPPT charge controller, and a 2,000-watt inverter/charger.
I wanted the system to stay separate from the house wiring and did not want a breaker panel in the shed. Most of the time the solar system handles what I use. I can use house power or a small generator that runs on gasoline or propane for backup.
The building later became my ham shack. Today the same solar system powers the radios, computer, lights, air conditioner, and the other things I run in the shack.

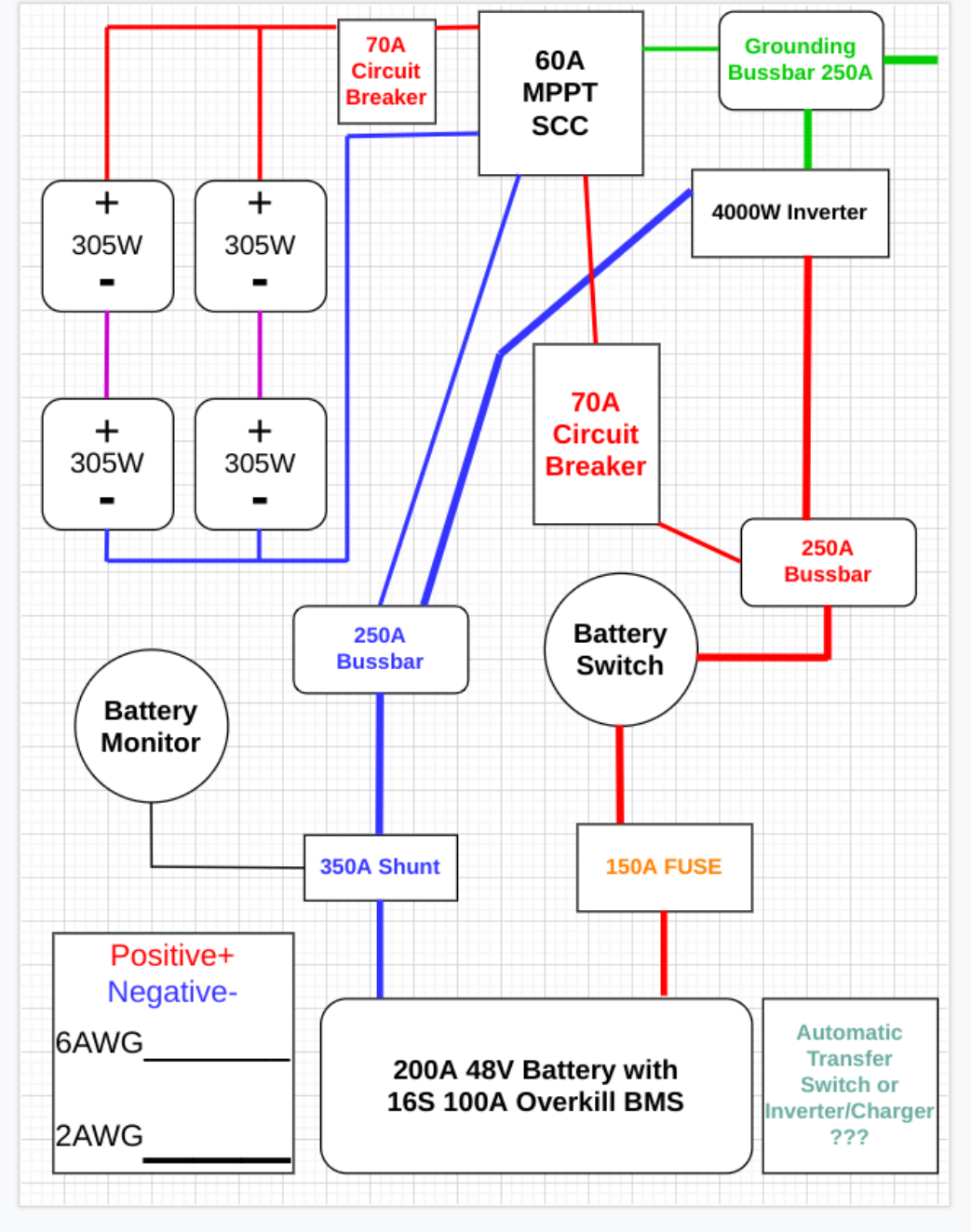

My May 29, 2021 planning diagram
I made this diagram a few weeks after buying the first panels. It is an early planning diagram, not the system I use today. I keep it because it shows where the project started and how much the plan changed as I learned more.
Important: Do not use this old diagram as wiring instructions.
